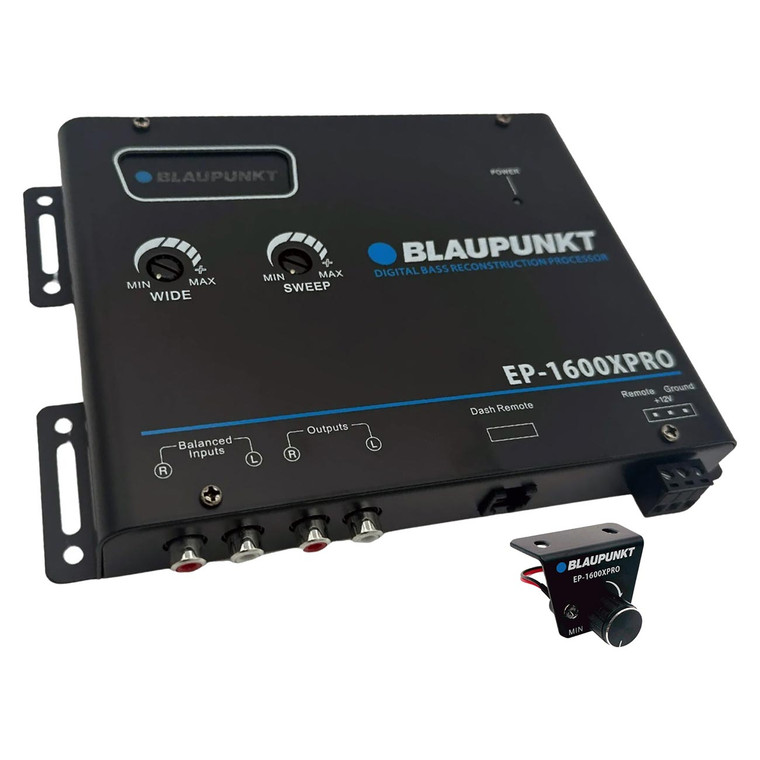

Blaupunkt Digital Bass Reconstruction Processor with Dash Mount Control (Black) - EP-1600XPRO

Blaupunkt Digital Bass Reconstruction Processor with Dash Mount Control (Black)

Blaupunkt Digital Signal Processors bring a combination of precision tuning, flexibility, and advanced features to car audio systems, delivering an enhanced and personalized auditory experience for enthusiasts.

BASS DRIVER: Accurately recreates and injects low-frequency information back into signal.  Creates more Bass impact even when listening to older compact discs or tapes.
BASS EQUALIZATION: Contours the restored bass back into your system.
BASS OUTPUT CONTROL: Allows maximum bass output of any audio system while restraining destructive bursts that can damage your system.

Restores bass frequencies lost during MP3 file compression
Delivers maximum bass control
Digital Bass Driver/Restoration Processor
Parametric Bass Boost with Variable Bandwidth Adjustment
LED MAX Bass Indicators
Balanced RCA Input circuitry minimizes induced noise
PWM High Head Room Power Supply

Maximum Input Level: 15V RMS
Maximum Output Level: 13.5V peak
Frequency Response: 10Hz – 20KHz; +/- 1dB
Total Harmonic Distortion: 0.003%
Signal to Noise Ratio: 130dB
Balanced Input Noise Rejection : >60dB
Input Impedance: 10K Ohms
Output Impedance: 150 Ohms
Power Supply: High Headroom PWM
Balanced/un-Balanced input Selector
Bass Output Voltage Select: 2.5V, 5V, 7.5V, 10v
Ground Isolation Selectable

Power Draw: 150mA
Recommended Fuse Rating: 1 Amp
Dash Remote Included

(W x H x L) 8"e; x 1.2"e; x 5.5"e;
