Barton Marine Size 3 Single Plain Bearing Block w/Swivel - N03130

Barton Marine Size 3 Single Plain Bearing Block w/Swivel - N03130

Barton Marine
UPC:
5035088080847
$21.31
$23.68
(You save $2.37 )
Current Stock:
Adding to cart… The item has been added
Description

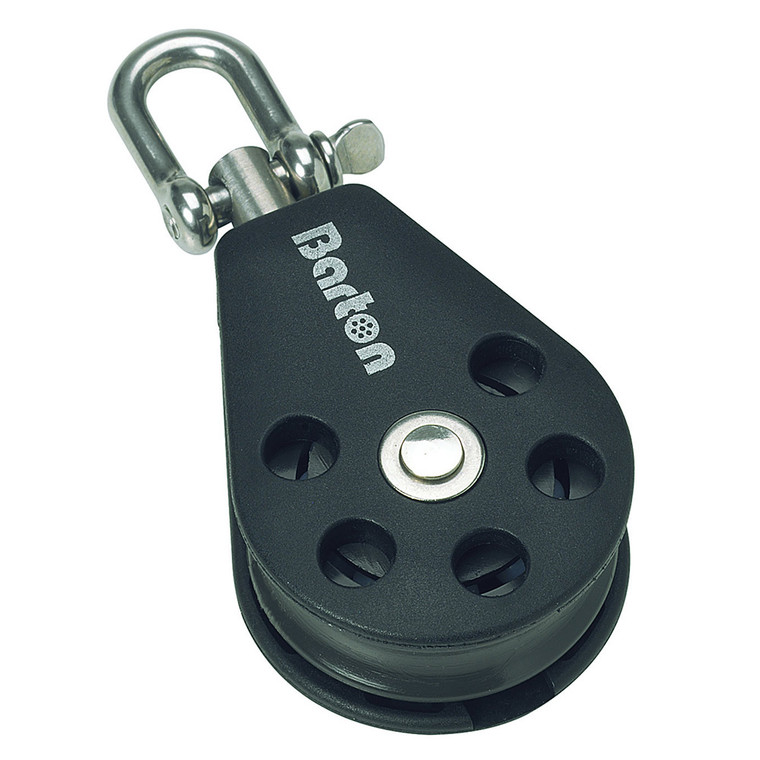

Size 3 Single Plain Bearing Block with Swivel

Barton plain bearing blocks have a precision molded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

Features:

  • Fully swiveling head with removable shackle
  • For use on dinghies, day boats, and light cruising yachts

Specifications Dimensions:

  • Length: (mm) 100 / (inch) 3-15/16"
  • Weight (grams): 73 g.
  • Single (mm) 45 x 13 / (inch) 1-3/4" x 1/2"
  • Max Rope Diameter: (mm) 10 / (inch) 3/8"
  • SWL: (kg) 400 / (lbs.) 881
  • Break Load: (kg) 800 / (lbs.) 1763

Note: break loads where break and safe working loads are stated, it is assumed that all sheaves are evenly loaded as in a purchase tackle
