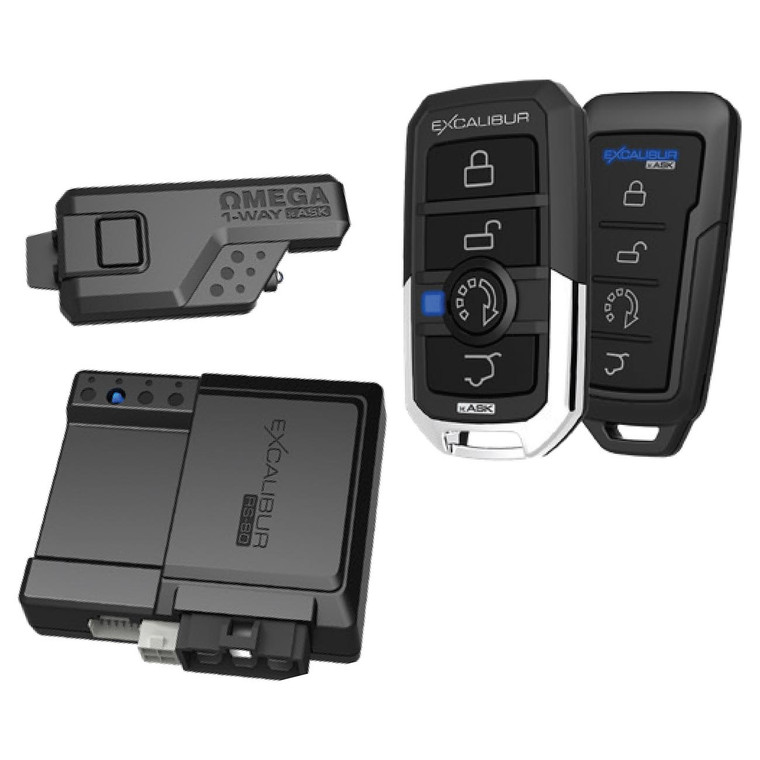

Excalibur 1-Way Remote Start & Keyless Entry System - RS-380

Excalibur 1-Way Remote Start & Keyless Entry System

Enhanced vehicle learn technology
New Remote designs & lightning fast RF protocol
Up to 1500 foot range!
High & low temp auto start via onboard thermistor
Low vehicle battery auto-start
Manual Transmission READY!
All inputs & outputs are now programmable!
Upgrade to 2-way easily with ‘RK’ kits (sold separately)
Alarm Ready- quickly upgrade to security w/ any Omega sensor and siren (sold separately)
Antenna port now supports LINKR-MBT for quick smartphone programming & control! (sold separately)

• ANTENNA/STATUS LIGHT/VALET PORT: This port supports any compatible antenna module. Select any combination of 1-way/2-way and range you’d like. It also supports our push-button LED (AU-LED-PB2). This port also supports our LINKR-MBT smartphone programmer/updater module!
• DUAL DATA PORTS: Both ports are physically matched to legacy (DBI) and modern (iDatalink) connectors. However, both support DBI or iDatalink protocols. Protocols are auto-detected during Vehicle Learn process or manually selectable.
• REMOTE START LOW CURRENT OUTPUTS: 4 analog outputs for several options to add extra or custom functions.  Have a +12v pin (500MA) for driving relays or bypass modules.
• DOOR LOCK/UNLOCK PORT: Analog outputs for door lock, driver unlock, & all door unlock. Has a +12v pin for driving relays or other analog adapters like the DLR-U
• MEDIUM CURRENT HARNESS PORT: Our secondary harnesses features 100% copper wire for maximum performance on mission-critical circuits.
• ONBOARD TEMPERATURE SENSOR: Provides low and high temp auto-start with selectable thresholds, temp readout on 2-way controllers, and auto-crank adjust for cold weather.
• LOW CURRENT HARNESS PORT: This provides all input triggers and low current outputs needed for any remote start and alarm (optional) install.
• PLUG-IN SENSOR PORT: Add any Omega analog security sensor you’d like. - “RS” models have the alarm disabled by default. When a sensor is plugged in, the alarm is turned on automatically!

HARDWARE COMPATIBILITY

Harnesses
Includes all hardwire harnesses
Compatible with all ‘OL-RS-HRN’ t-harnesses

Remote Kits
Echo 2-Way Compatible (sold separately)
Upgrade with any Excalibur ‘RK-X80’ models - NEW!

Smartphone Control
LINKR-LT3 4G LTE control and tracking (sold separately)
LINKR-MBT Bluetooth direct control & programming (X-OS) (sold separately)
*Now supported on the antenna port for a “no tools” upgrades!

Security Capability
Plugging in any sensor automatically upgrades the system to full security!
Dedicated sensor port - supports ANY Omega sensor
Dedicated siren & horn outputs - supports any 12v Siren

PROGRAM FEATURES FAST With THE FREE* LINKR MOBILE APP!
*LINKR-MBT Module Required (sold separately)
