Cole Hersee - 2 Circuit Push Pull Switch - M-531-BP
Cole Hersee
$60.34
$68.99
(You save
$8.65
)
Write a Review
Cole Hersee
Cole Hersee - 2 Circuit Push Pull Switch - M-531-BP

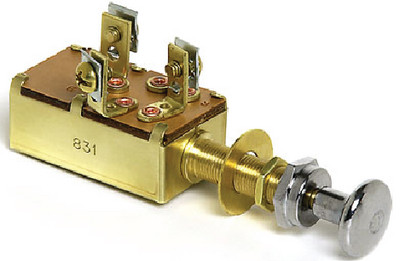

Cole Hersee M531BP 2 Circuit Push Pull Switch
2 circuit. Normally off. 3 positions: Off - On #1 - On #2. Knob face dia: 3/4". Face nut washer and hexnut. Permits two circuits (i.e. anchor and running lights) to be operated independently with one switch. Features non-corrosive construction. Gasket sealed case protects against moisture and dust. Brass mounting stem: 3/8" -32 x 1-1/4"L complete with chrome plated brass knob & face nut washer and hex nut for mounting. Mount in panels up to 1" thick. Rating 10A @ 12VDC. 6-36VDC. Brass housing. Boxed.
Positions : Off/On/On
Type : SPDT
Terminals : 3 Screw
Pkg. : Retail
:
:
2 circuit. Normally off. 3 positions: Off - On #1 - On #2. Knob face dia: 3/4". Face nut washer and hexnut. Permits two circuits (i.e. anchor and running lights) to be operated independently with one switch. Features non-corrosive construction. Gasket sealed case protects against moisture and dust. Brass mounting stem: 3/8" -32 x 1-1/4"L complete with chrome plated brass knob & face nut washer and hex nut for mounting. Mount in panels up to 1" thick. Rating 10A @ 12VDC. 6-36VDC. Brass housing. Boxed.
Positions : Off/On/On
Type : SPDT
Terminals : 3 Screw
Pkg. : Retail
:
:
