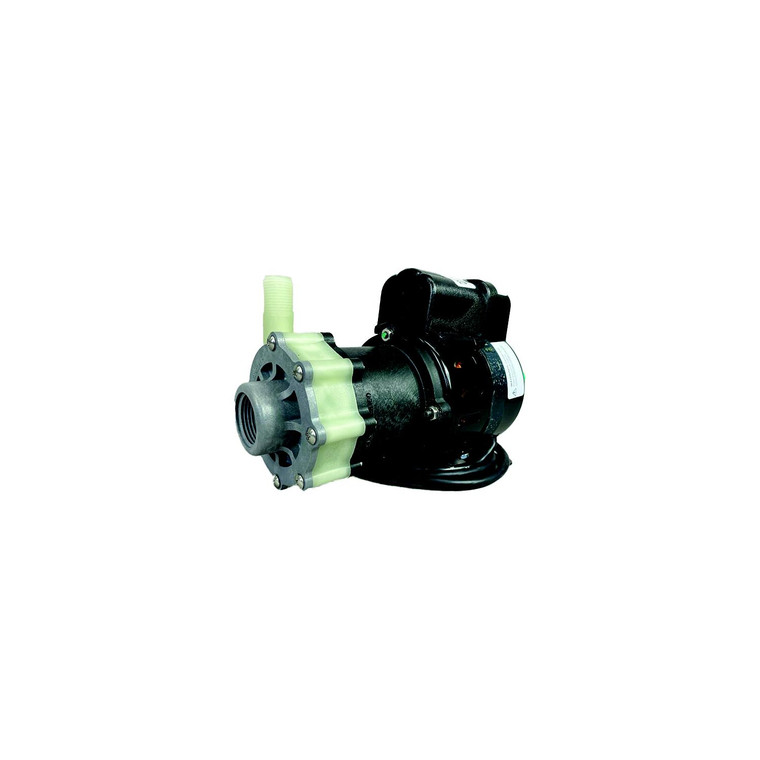

C5MMD230V March Pumps Air Cooled Centrifugal Magnetic Drive Pump - AC-5M-MD 230V

C5MMD230V March Pumps Air Cooled Centrifugal Magnetic Drive Pump - AC-5M-MD 230V

March Pumps
UPC:
860013488994
$468.68
$506.69
(You save $38.01 )
Current Stock:
Adding to cart… The item has been added
Description
Industrial AC-5M-MD is an American air cooled seal-less centrifugal magnetic drive pump ideal for marine applications such as chemical recirculation, chemical transfer, and scrubber systems. The standard motor is a 1 Phase 115V or 230V 0.125 Horsepower fan cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options) Capable of generating a maximum flow of 17 gallons per minute at 1 feet, and its maximum head is 27 Ft (11PSI). Ignition Protected per SAE J1171 and ISO 8846, and has extended run dry protection thru the use of a carbon bushing. It is capable of 48,000 BTU a hour.



Gallons Per Minute : 17
Inlet : 1" FPT
Model Number : AC-5M-MD
Outlet : 1/2" MPT
Voltage : 230
:
:
