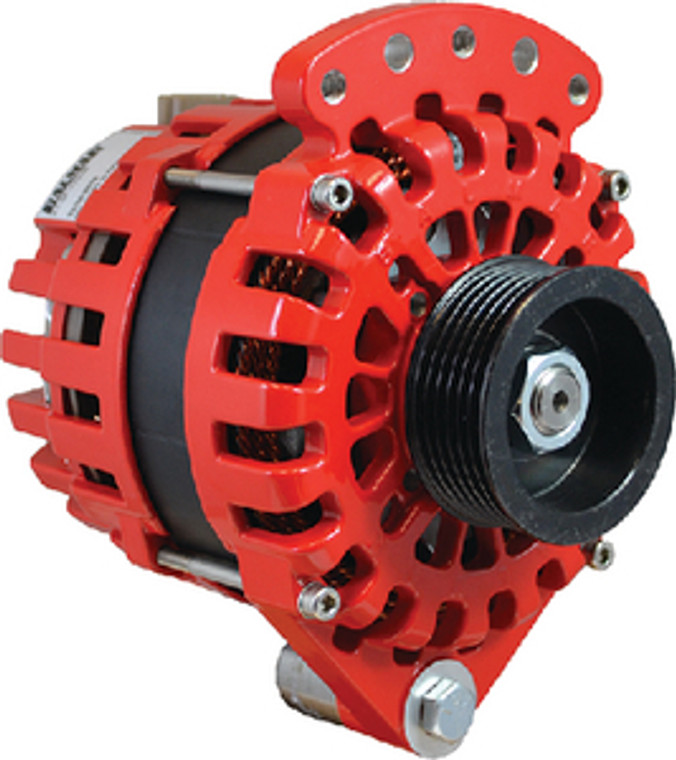

Balmer - Alternator Xt 170a 12v Sf Ir - XTSF170IR
Balmer
$539.00
$587.99
(You save
$48.99
)
Write a Review
Balmer
Balmer - Alternator Xt 170a 12v Sf Ir - XTSF170IR
Balmar SF170IR Xt-Series Alternator 170 Amp
For WakeBoat and Inboard Gas Applications.
State-of-the-art braided wire stator design to generate exceptional output in the smallest possible area. The XT-Series stator achieves an industry-best 85% copper windings density which provides more power at low RPM higher overall power and cooler operation. Mounting styles are drop-in compatible for WakeBoat and other GM gasoline engine applications. Over 60% of WakeBoat run times are at idle speed. Many high current electrical loads are engaged at idle including ballast pumps high-output stereo systems and multiple instrumentation loads. Standard alternators only produce about 30A-40A at idle speed leaving these loads to be serviced by onboard batteries. Excessive draining causes battery sulfation and reduced lifetimes. Dealers report that AGM batteries which should last 5-7 years on these vessels are being replaced annually. The XT-Series Alternator produces over 100A at idle speed ample power to service all electrical loads with power left over to top-off house batteries.
Mount : 1-2" Single Foot (11Si Typical)
Amps : 170
:
:
:
:
For WakeBoat and Inboard Gas Applications.
State-of-the-art braided wire stator design to generate exceptional output in the smallest possible area. The XT-Series stator achieves an industry-best 85% copper windings density which provides more power at low RPM higher overall power and cooler operation. Mounting styles are drop-in compatible for WakeBoat and other GM gasoline engine applications. Over 60% of WakeBoat run times are at idle speed. Many high current electrical loads are engaged at idle including ballast pumps high-output stereo systems and multiple instrumentation loads. Standard alternators only produce about 30A-40A at idle speed leaving these loads to be serviced by onboard batteries. Excessive draining causes battery sulfation and reduced lifetimes. Dealers report that AGM batteries which should last 5-7 years on these vessels are being replaced annually. The XT-Series Alternator produces over 100A at idle speed ample power to service all electrical loads with power left over to top-off house batteries.
- 170A in a Small Case Package
- Up to 110A at Idle Speeds
- Ideal for High Electrical Load Vessels
- High Speed Bearings for Long Life
- Dual Fan Cooling High Airflow Frame
- USCG Title 33 ISO 8846 and SAE J1171 Certified
Mount : 1-2" Single Foot (11Si Typical)
Amps : 170
:
:
:
:
