Parkpower by Marinco - Contour H.d.master Swt.chasis - 701CHRV
Parkpower by Marinco
$32.61
$36.19
(You save
$3.58
)
Write a Review
Parkpower by Marinco
Parkpower by Marinco - Contour H.d.master Swt.chasis - 701CHRV

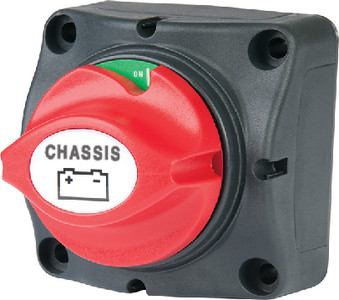

Park Power 701CHRV Battery Master Switch w/"Chassis" Label
Can be used as a stand alone unit or locked together with other switches. Features a control knob which cannot be removed while in the ON or OFF position but it can be removed by switching to an anti-clockwise 45 position. Also features removable side plates on 4 sides for access of up to 1/0 cables plus a rear cover insulating the rear terminals against any short circuits.
Specifications:
Description : Chassis Battery
Size : 2.75" x 2.75" x 3"H
:
:
:
:
Can be used as a stand alone unit or locked together with other switches. Features a control knob which cannot be removed while in the ON or OFF position but it can be removed by switching to an anti-clockwise 45 position. Also features removable side plates on 4 sides for access of up to 1/0 cables plus a rear cover insulating the rear terminals against any short circuits.
Specifications:
- Continuous Rating: 275 Amps DC
- Intermittent Rating: 455 Amps DC
- Cranking Rating: 1250 Amps DC
- Voltage Rating: 48 Volts DC
- Operation: On/Off
- Recessed or Surface Mount
- Ignition Protected
- Termination Stud Size: 3/8" (2 x 10mm)
- Dimensions: 2.75" x 2.75" x 3"H (69 x 69 x 75mm H)
- Tin plated copper studs and nuts
Description : Chassis Battery
Size : 2.75" x 2.75" x 3"H
:
:
:
:
