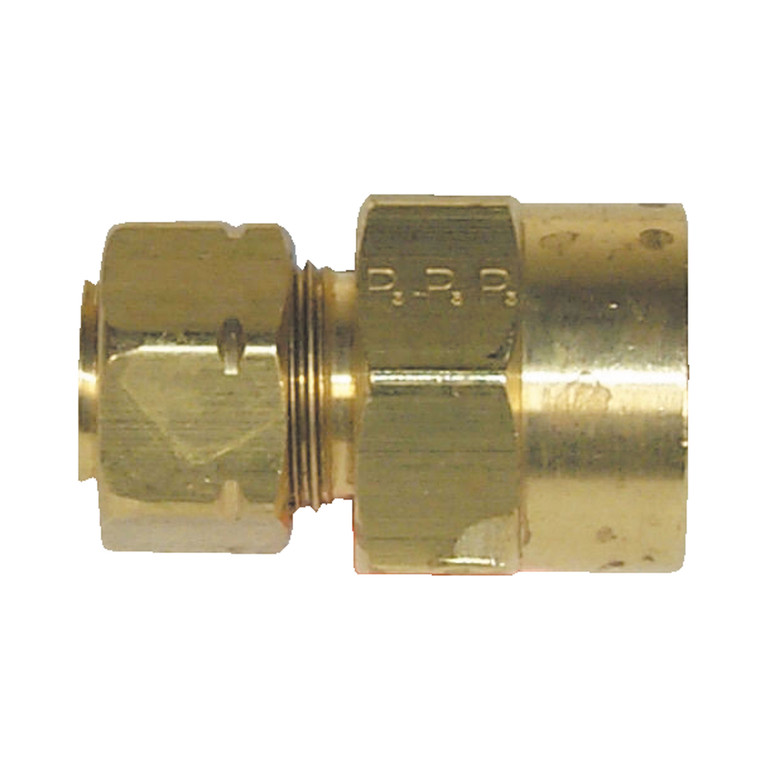

Parker 66CA-8-8 Compress-Align Brass Female Connector - 1/2" Tube x 1/2" Female NPT - 66CA-8-8 PARKER
Parker
$7.11
$7.90
(You save
$0.79
)
Write a Review
Parker
Parker 66CA-8-8 Compress-Align Brass Female Connector - 1/2" Tube x 1/2" Female NPT - 66CA-8-8 PARKER
Parker's economical Compress-Align fittings are pre-assembled with a captive sleeve which is always oriented correctly for faster assembly. The captive sleeve gives a visible inspection before and after installation and the design of the sleeve aligns to seal even out-of round tubing. Compress-Align can be used in many areas where flare fittings are used due to the higher pressure rating, meaning no flaring, soldering or tube preparation resulting in faster installation. Compress-Align bodies are interchangeable with standard compression bodies so inventory is decreased. Use with copper, aluminum and the following Parker Parflex Division tubing.
Female Connector
Style: Tube to Female Pipe; Connection Type: NPTF
1/2" Tube Size x 1/2" Female NPT
Body Material: Brass
Maximum Operating Pressure: 2800 PSI (193 Bar)
Female Connector
Style: Tube to Female Pipe; Connection Type: NPTF
1/2" Tube Size x 1/2" Female NPT
Body Material: Brass
Maximum Operating Pressure: 2800 PSI (193 Bar)
