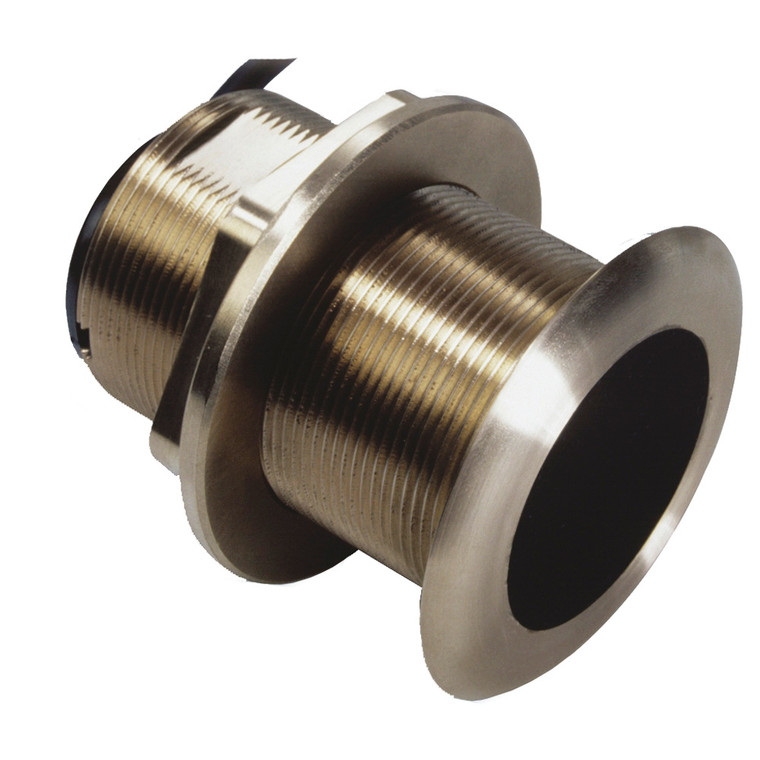

Navico B60-20, 20 Degree Tilted Element Transducer - B60-20-BL
Navico
$324.99
Write a Review
Navico
Navico B60-20, 20 Degree Tilted Element Transducer - B60-20-BL
B60 Tilted Element 20 Degree
20 Degree titled version is designed for 16 Degree - 24 Degree deadrise angles
The bronze B60-20 Degree provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Compatible with Lowrance HDS Series and Simrad NSE Series Multifunction Display units.
Features:
20 Degree titled version is designed for 16 Degree - 24 Degree deadrise angles
The bronze B60-20 Degree provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Compatible with Lowrance HDS Series and Simrad NSE Series Multifunction Display units.
Features:
- Depth/Temp
- 50/200 kHz
- 600w RMS
- Mid-performance
- 7 Pin Blue Connector
- Bronze
