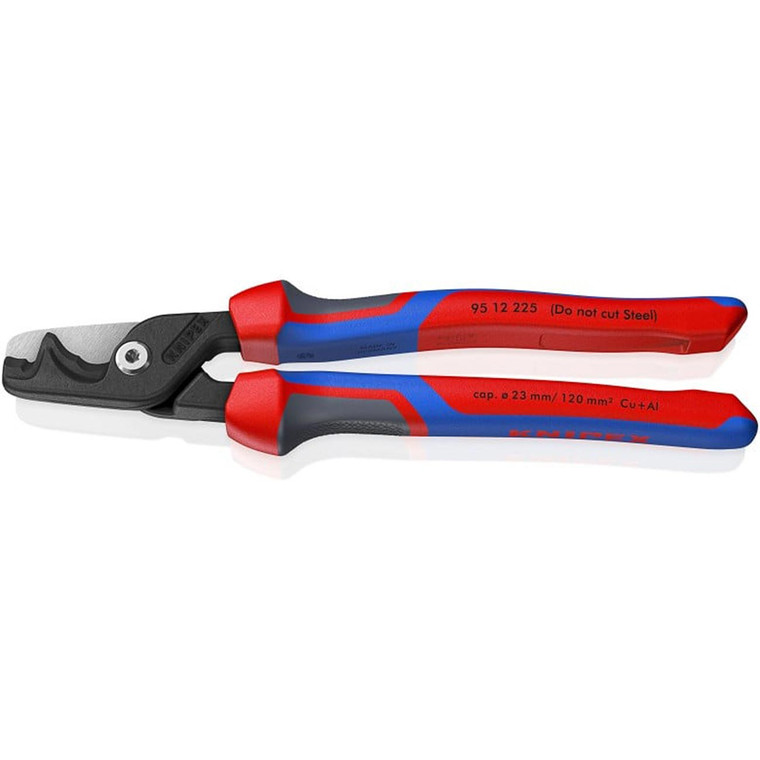

Knipex StepCut XL Cable Shears (9") - 9512225
Knipex
$63.64
Write a Review
Knipex
Knipex StepCut XL Cable Shears (9") - 9512225
Knipex StepCut XL Cable Shears (9?)
- High-leverage joint, long handles and optimized cutting edges for an easier cut than with compact cable shears
- Cuts solid copper or aluminum cables up to 2 AWG, stranded cables up to 2/0 AWG and fine stranded cables up to 4/0 AWG
- Dual cutting areas: step cutting edges position cables close to the joint and the front cutting edge is used for the gradual cutting ("e;nibbling"e;) of larger cables
- Easy one- or two-handed operation with minimal handle opening for large cable diameters
- Slim head for better accessibility
- Not suitable for steel-reinforced cables, e.g. ACSR
- Adjustable, high-leverage bolted joint provides precise and smooth cutting
- Pinch guard prevents operators' fingers being pinched
- High-grade special tool steel; forged; oil-hardened
- Laser-hardened cutting edges (approx. 56 HRC)
Wire Size: Up to 2/0 AWG (solid and stranded cables), Up to 4/0 AWG (fine stranded cables)
Cable Type: Stranded Cables / Fine Stranded Cables / Solid Cable
Length: 9"e;
Width: 2-1/4"e;
Height: 1"e;
Weight: 0.925 lbs.
Material Type: High-grade special tool steel, forged, oil-hardened
Handle Type: KNIPEXTEND Comfort Handle
Surface Finish: Burnished
Joint Type: Bolted
Cutting Edge Shape: Shear
Jaw Length: 1-1/4"e;
Jaw Width: 1-1/4"e;
Jaw Thickness: 1/2"e;
Tip Thickness: 1/4"e;
Tip Width: 1"e;
Cable Cutting Capacity: 29/32"e;
KNIPEXTEND comfort handles make it easy to identify your tools and utilize the KNIPEX TetheredTool System lanyards and adapters by simply adding KNIPEXTEND ColorCoded Clips and TetheredTool Clips (KNIPEXTEND accessories sold separately)
