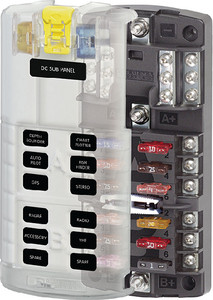

Blue Sea Systems - Fuse Block Stb Splitbus 12cir - 5032
Blue Sea Systems ST Blade Split Bus Fuse Bock 12 Circuit
Two isolated 6-circuit fuse blocks with a negative bus. For use when a mix of switched and 24-hour circuits are desired in the same block.
Specifications
Description : 12 circuits
Stud : Negative Bus: #8-32 stud
Positive Bus: #8-32 stud
:
:
:
:
Two isolated 6-circuit fuse blocks with a negative bus. For use when a mix of switched and 24-hour circuits are desired in the same block.
- Common and/or independent source fuse block
- Provides two isolated groups of six ATO/ATC circuits
- For use with either two isolated batteries or with a single battery providing a mix of 24-hour and switched circuits
- Clear insulating cover satisfies ABYC/USCG insulation requirements and provides storage for two spare fuses
- Accepts ring terminals
- Easy to open push button latch provides easy access to fuses
- Tin-plated copper buses and fuse clips
- Includes 20 write-on circuit labels
- Fuses sold separately
Specifications
- Voltage Max. Operating: 32V DC
- Amperage Max. Operating: 30A per circuit 100A total (not to exceed 80A per load group)
- Fuse Type: ATO or ATC Fuses
- Screw Terminal: #8-32 Screws with captive star lock washer
- Mounting: #8 Screw (M4)
- Recommended Wire Size: Positive Feed: 4-6 AWG (25-16 mm²) Branck Circuits: 10-16 AWG (6-15 mm²)
- Recommended Torque: #10 Stud: 24 in-lb (2.71 N-m) #8 Screw: 18 in-lb (2.03 N-m)
Description : 12 circuits
Stud : Negative Bus: #8-32 stud
Positive Bus: #8-32 stud
:
:
:
:
