Blue Sea Systems - Circ Brkr Block St Clb 12circ - 5051
Blue Sea Systems
$105.69
$121.09
(You save
$15.40
)
Write a Review
Blue Sea Systems
Blue Sea Systems - Circ Brkr Block St Clb 12circ - 5051

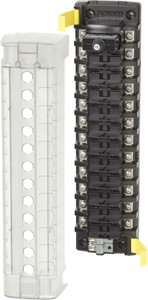

Blue Sea St Clb Push Button Circuit Breaker Block
Description : 12 circuit (independent)
:
:
:
:
:
- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals
- Clear insulating cover with square format label recesses satisfies ABYC/USCG insulation requirements
- Easy to open cover clip
- Two breakouts for wire access
- Accepts ring terminals
- Optional push button waterproof boots or dress nuts can be installed over cover
- Voltage Max 32V DC
- Amperage Max 32A (per circuit)
- Amperage Max 100A (per block-common source)
- Amperage Max 40A (per jumped circuit group-independent source)
Description : 12 circuit (independent)
:
:
:
:
:
