Blue Sea Systems 7622-bss Solenoid Ml 500a 12v Acr - 7622-BSS
Blue Sea Systems
$256.79
$356.00
(You save
$99.21
)
Write a Review
Blue Sea Systems
Blue Sea Systems 7622-bss Solenoid Ml 500a 12v Acr - 7622-BSS

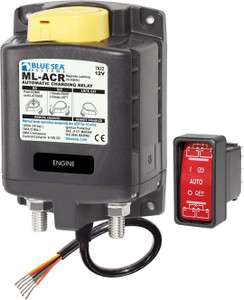

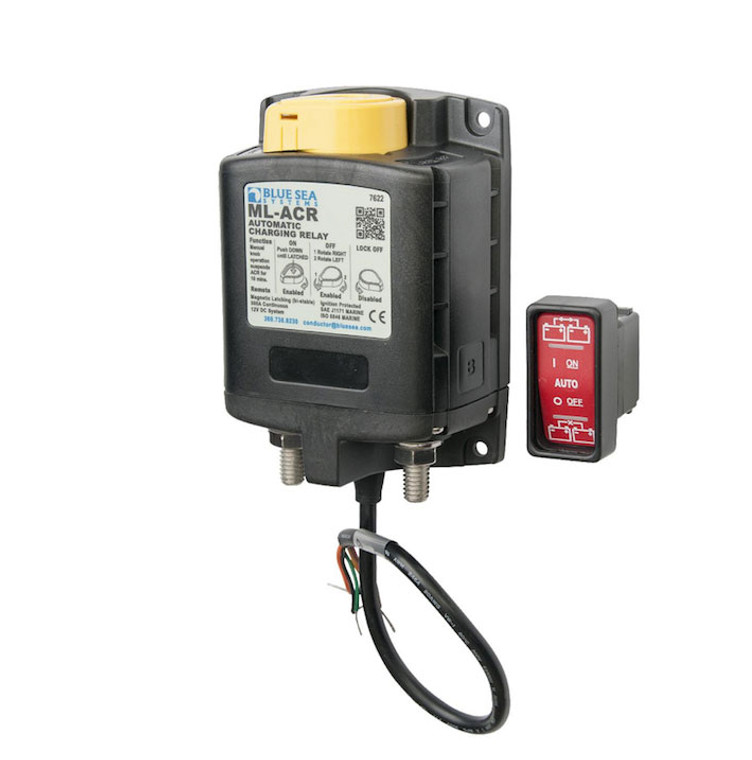

500A magnetic latching relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine. LED output to remotely indicate switch state - requires optional LED or Remote Control Contura Switch with integrated LED. 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance. One-piece stainless flange nuts ensure safe and secure connections. Silver alloy contacts provide high reliability for live switching. Includes a Remote Control Contura Switch.
Magnetic Latching (ML) relay draws very low current in the ON state
Start Isolation (SI) can be configured for temporary isolation of House loads from engine circuit during engine cranking to protect sensitive electronics
Engine Isolation (EI) can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
Senses charging on two battery banks
Magnetic Latching (ML) relay draws very low current in the ON state
Start Isolation (SI) can be configured for temporary isolation of House loads from engine circuit during engine cranking to protect sensitive electronics
Engine Isolation (EI) can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
Senses charging on two battery banks
