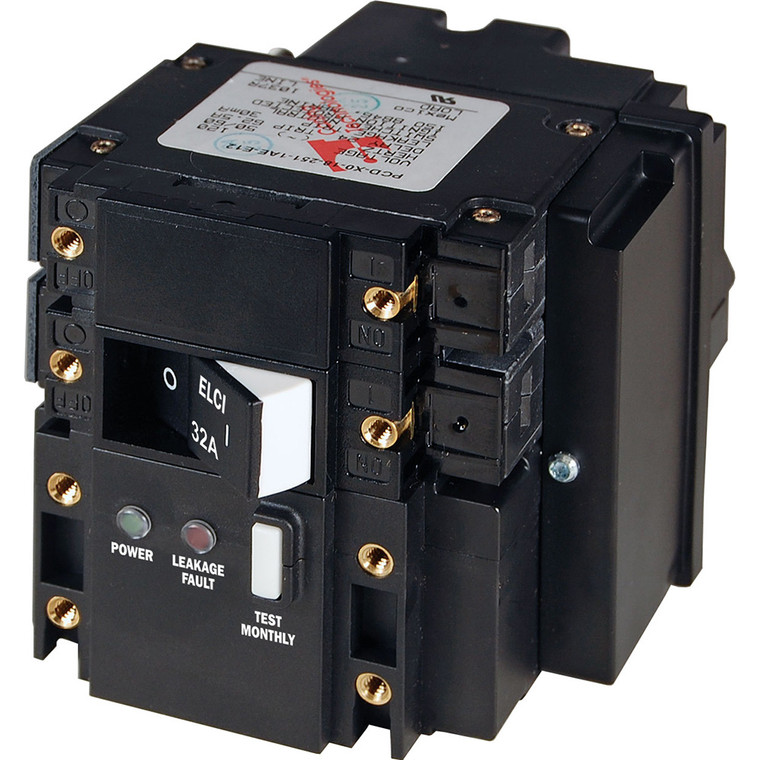

Blue Sea C-Series ELCI Main Circuit Breaker - Double Pole 230V AC 32A - 3092

Blue Sea C-Series ELCI Main Circuit Breaker - Double Pole 230V AC 32A - 3092

Blue Sea Systems
UPC:
632085030926
$707.15
$1,090.99
(You save $383.84 )
Current Stock:
Adding to cart… The item has been added
Description

C-Series ELCI Main Circuit Breaker - Double Pole 230V AC 32A

Features:

  • Trips on short circuit, overload, or leakage to ground
  • Front panel mount—installed in a power distribution panel

Specifications:

  • Amperage: 32A
  • Actuator Style: Flat actuator
  • Poles: 2
  • Ignition Protected: Yes
  • Maximum Voltage: 240V AC per pole
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Interrupt Capacity: 5000A
  • Minimum Operating Temperature: -35 degrees C
  • Maximum Operating Temperature: 66 degrees C
  • Leakage Trip Amps: 30mA
  • Mounting Screw: #6-32 Stainless Steel
  • Mounting Screw Torque: 6in-lb (0.68 Nm)
  • Switching Cycles: 10000
  • Weight: 1.05 lbs (0.48kg)
