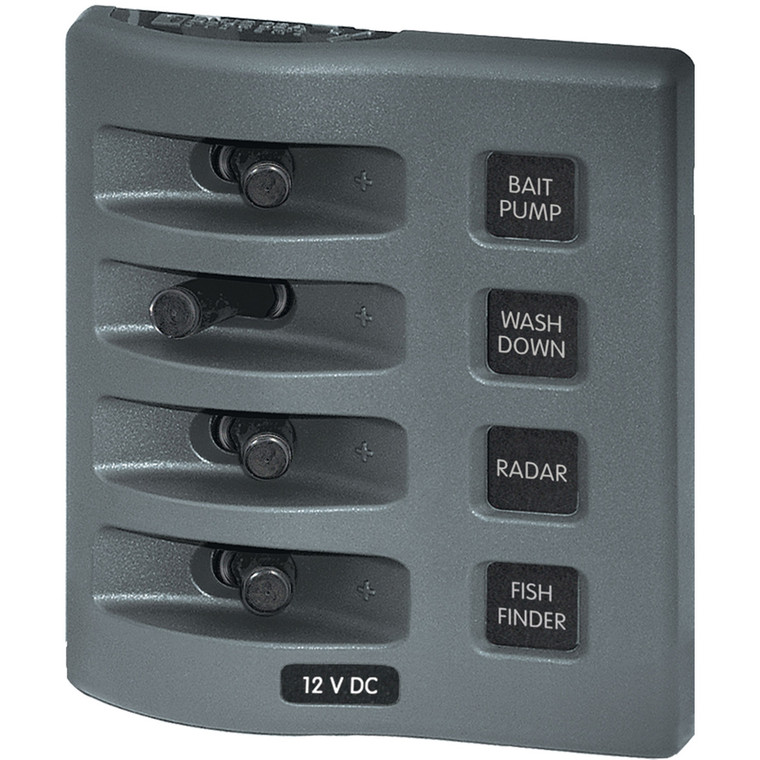

Blue Sea 4305 WeatherDeck 12V DC Waterproof Switch Panel - 4 Posistion - 4305

Blue Sea 4305 WeatherDeck 12V DC Waterproof Switch Panel - 4 Posistion - 4305

Blue Sea Systems
UPC:
632085043056
$52.42
$71.57
(You save $19.15 )
Current Stock:
Adding to cart… The item has been added
Description
WeatherDeck 12V DC Waterproof Switch Panel - 4 Position

  • Integrated switch guards reduce the risk of accidental switching
  • Panels can be mounted in four different orientations
  • Panel front rated IP67 when properly mounted with watertight mounting gasket
  • UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws


Weatherproof: Waterproof
Positions: 4
Nominal Voltage: 12V DC/24V DC
Circuit Protection: None
Maximum Amperage: 15A @ 12V DC (per circuit)
Panel Cumulative Rating: 45A
Material: Reinforced Polycarbonate
Height: 4.30"(109.22 mm)
Width : 3.88"(98.55 mm)
Depth: 2.50"(63.5 mm)
Weight: 0.90lb (0.41 kg)
