Panther 550055 Trim & Tilt Model 55 - 550055
Panther
$849.65
Write a Review
Panther

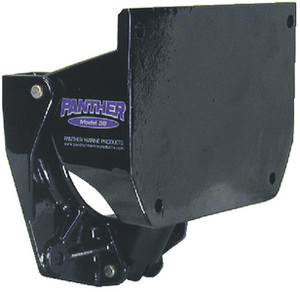

Panther 550055 Trim & Tilt Model 55 - 550055
Our most popular trim and tilt, this unit is quickly becoming a classic. It is rated for outboards up to 55 HP or 250 lbs. Perfectly designed for pontoons, fishing or hunting boats. A rugged 12 volt powered actuator moves the motor plate up and down, allowing the user to easily position the motor with the remote control tethered to a 12 foot cable. Made of 713 cast aluminum and protected with durable black powder coat, the 55 has an overall weight of 25 lbs. To provide adequate support for your Panther bracket, the Transom side of the bracket must be 100% covered by the boat’s transom.
Motor Mount: Bolt or Clamp
Max HP Rating: 55 HP
Max Weight: 250 lb./ 115 kg.
Motor Plate Dimensions: 10" Height x 14-1/4" Width; Bolt Pattern: B.I.A.
Transom Plate Dimensions: 11" Height x 15-1/4" Width; Bolt Pattern: B.I.A.
Motor Mount: Bolt or Clamp
Max HP Rating: 55 HP
Max Weight: 250 lb./ 115 kg.
Motor Plate Dimensions: 10" Height x 14-1/4" Width; Bolt Pattern: B.I.A.
Transom Plate Dimensions: 11" Height x 15-1/4" Width; Bolt Pattern: B.I.A.
