Lenco Marine 15015-101 Electric Edge Mount Trim Tab Kit Without Switch - 12" x 9" - 15015-101

Lenco Marine 15015-101 Electric Edge Mount Trim Tab Kit Without Switch - 12" x 9" - 15015-101

Lenco Marine
UPC:
874847004381
$724.42
Current Stock:
Adding to cart… The item has been added
Description

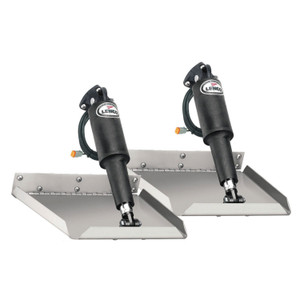

Designed for boat applications where a lower actuator mounting height is desirable. Actuator mounts at the trailing edge of the blade giving it a ½” (1.3 cm) lower mounting height on 9” (22.9 cm) long blades & 3” (7.6 cm) lower mounting height on 12” (30.5 cm) long blades. All edges are turned up for added strength and style. Boat lengths 14’ (4.3 m) to 36’ (11 m). Blades are constructed of 12 gauge (2.7 mm) laser cut 304 stainless steel with 1” (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge, & 1/8” (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal. Kit includes: (2) 12-gauge stainless steel standard finish blades, (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors, (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length, (2) 15085-001 upper mounting brackets with gland seal, (2) 50014-001 lower mounting brackets and Lenco owner’s/installation manual. Switch kits sold separately.

12-Volt Actuators
Boat Length: 14' - 18'
Hinge Height: 2" (5.1 cm)
Min Transom Height: 13.5" (34.3 cm)
Dimensions: 12" x 9"
