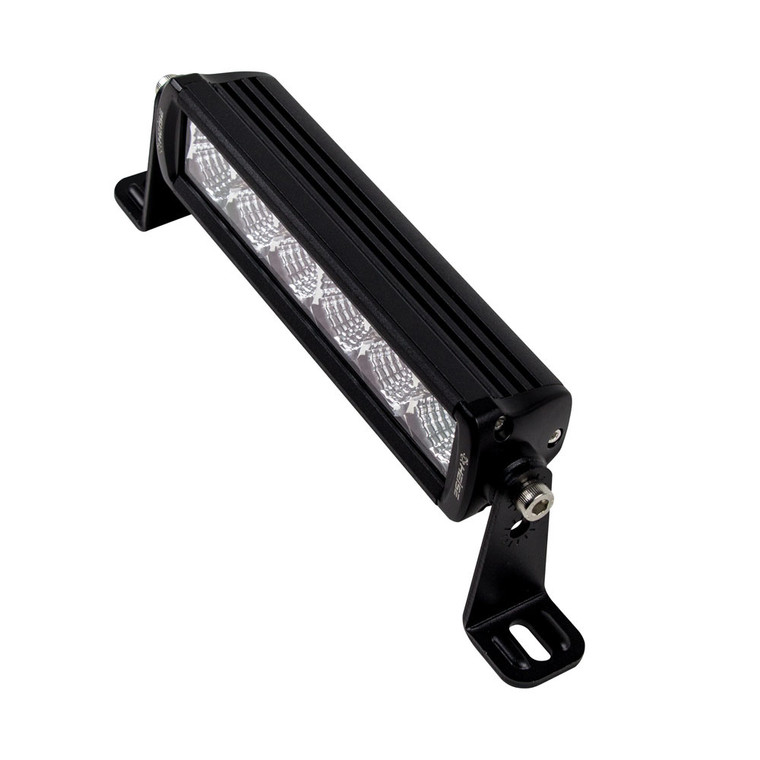

HEISE Single Row Slimline LED Light Bar - 9-1/4" - HE-SL914

HEISE Single Row Slimline LED Light Bar - 9-1/4" - HE-SL914

HEISE LED Lighting Systems
UPC:
086429317417
$190.99
$212.99
(You save $22.00 )
Current Stock:
Adding to cart… The item has been added
Description

Single Row Slimline LED Light Bar - 9-1/4"

SPECS

  • Input Voltage: 10 -- 30V DC
  • Wattage: 18W (6 -- 3W OSRAM LEDs)
  • Raw Lumens: 1440
  • LUX @ 10M: 22
  • Color Temperature: 6000K
  • Beam Pattern: 90° Flood

CONSTRUCTION

  • Housing Material: Powder Coated Aluminum
  • Housing Color: Black
  • Membrane: Gore
  • Lens Material: PC
  • Mounting Bracket: Side and Bottom Mounting
  • Mounting: Side and Bottom
  • Hole Dimensions:
  • Brackets turned inward -- 9"
  • Brackets turned outward -- 11"
  • Mounting Bolt Drill -- .25"
  • Height of Light Bar Itself: 2"
  • Depth of Light Bar Itself: 2"
  • Electronics: Integrated -- Epoxy Encapsulated
  • Hardware: Stainless 316

OPERATION

  • Operating Temperature: -- 40°C to +60°C
  • Current Consumption: .9 amps @ 13.8 volts
  • IP Rating: IP67
  • Protections: Reverse Polarity
