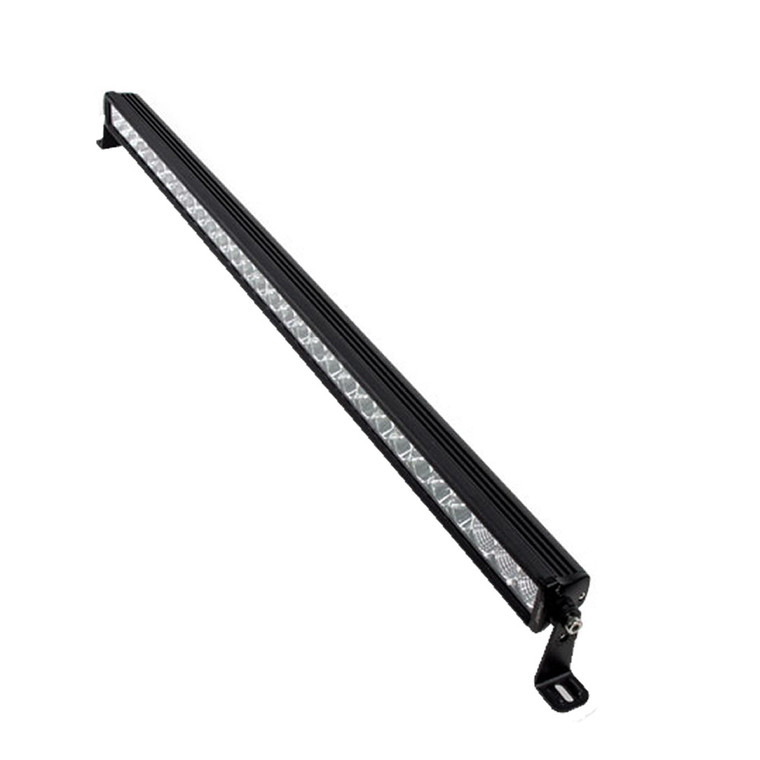

HEISE Single Row Slimline LED Light Bar - 39-1/4" - HE-SL3912

Single Row Slimline LED Light Bar - 39-1/4"

SPECS

• Input Voltage: 10 -- 30V DC
• Wattage: 90W (30 -- 3W OSRAM LEDs)
• Raw Lumens: 7200
• LUX @ 10M: 2920
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

• Housing Material: Powder Coated Aluminum
• Housing Color: Black
• Membrane: Gore
• Lens Material: PC
• Mounting Bracket: Die -- cast Aluminum
• Mounting: Side and Bottom
• Hole Dimensions:

• Brackets turned inward -- 39"
• Brackets turned outward -- 41"
• Mounting Bolt Drill -- .25"

• Height of Light Bar Itself: 2"
• Depth of Light Bar Itself: 2"
• Electronics: Integrated -- Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: -- 40°C to +60°C
• Current Consumption: 4.9 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity
