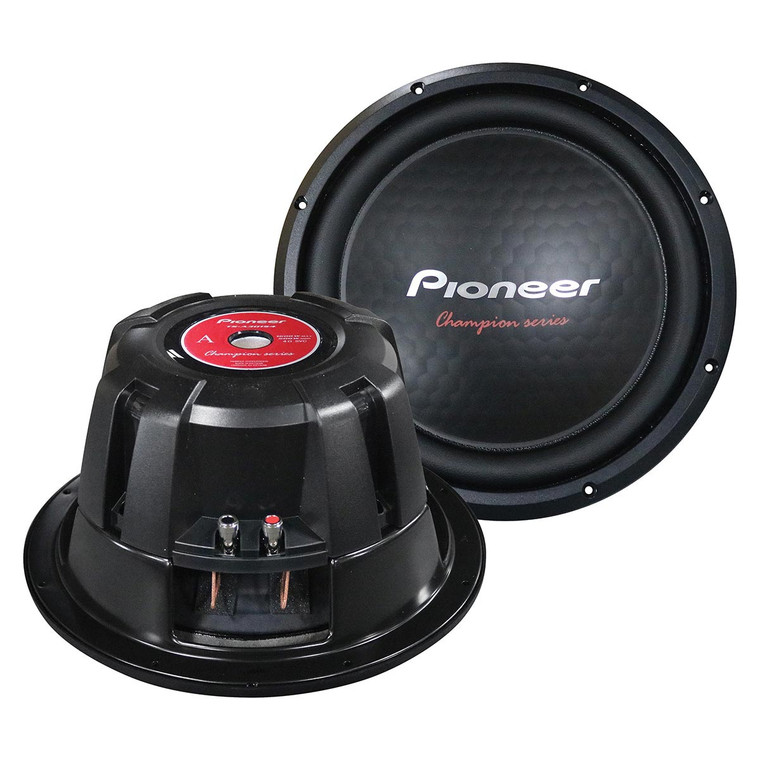

Pioneer 12" Woofer 500W RMS/1600W Max Single 4 Ohm Voice Coil - TS-A301S4

Pioneer 12" Woofer 500W RMS/1600W Max Single 4 Ohm Voice Coil - TS-A301S4

Pioneer
UPC:
884938496056
$130.00
Current Stock:
Adding to cart… The item has been added
Description

Pioneer 12" Woofer, 500W RMS/1600W Max, Single 4 Ohm Voice Coils (Sold Each)

Champion Series
Maximum Peak Power Handling: 1600 Watts
Continuous Power Handling (RMS): 500 Watts
Sensitivity (1W/1m) 92 dB
Frequency Range: 20 Hz to 1.6 kHz
Single 4 Ohm voice coil
12" Honeycomb IMPP Composite Cone Structure
Dual layer fiber reinforced elastic polymer surround
90 oz Ferrite Magnet
Basket Material: Reinforced Stamped Steel
Mounting Depth: 6.125"

Cut Out dimensions: 11.125"
Equivalent Compliance (VAS): 34.1
Free Air Resonance (Fs): 38
Linear Excursion (Xmax): 7.7
Port Diameter: 3"
Port Length: 6.5"
Recommended Ported Box volume: 1.5 Cu Ft / 42.5 Liters
Recommended Sealed Enclosure Volume: 1.25 Cu Ft / 35.4 Liters
Total Speaker œQ (Qts): 0.64
